CX900 Pondline Hot Wedge Welding Machine with Temperature Control PID Copper Hot Wedge and German Imported Bearings

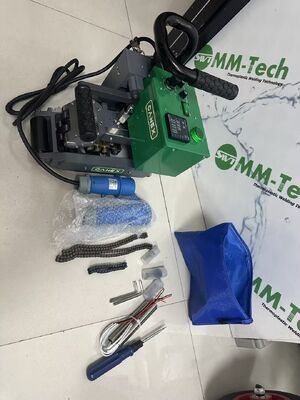

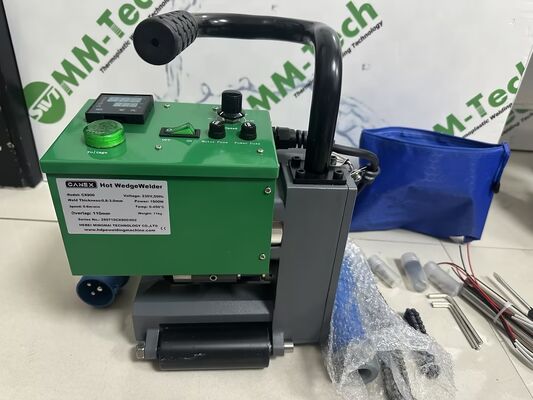

Image Grand : CX900 Pondline Hot Wedge Welding Machine with Temperature Control PID Copper Hot Wedge and German Imported Bearings

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	MM-Tech
Certification:	CE
Numéro de modèle:	CX900

Conditions de paiement et expédition:

Quantité de commande min:	1SET
Prix:	US$1350-US$1400/set
Détails d'emballage:	Boîte en aluminium
Délai de livraison:	5-8 jours ouvrables
Conditions de paiement:	T/T, Union occidentale
Capacité d'approvisionnement:	1000 par semaine

Contact

Description de produit détaillée

Nom du produit:	Soudeuse à coin CX900 Hor	Largeur de soudage:	15 mm × 2, cavité intérieure 16 mm
Largeur de chevauchement:	120mm	Tension:	220V
Fréquence:	50Hz	Pouvoir:	1800W
Vitesse de soudage:	0-6m / min	Épaisseur du matériau de soudage:	0,8 mm-3 mm
Température de chauffage:	0-450℃	Poids net:	11KG

CX900 Pondline Hot Wedge Welding Machine

Temperature Control CX900 Geomembrane Welding Machine For Fishpond

CX series geomembrane welding machines feature copper or brass hot wedges to ensure efficient and accurate welding processes, meeting the requirements for membranes of different materials. The entire machine utilizes German-imported bearings for excellent stability and durability, extending equipment service life and ensuring long-term stable operation. Suitable for welding geomembranes with thicknesses of 0.3-4.0mm, these machines are easy to operate with excellent performance, making them ideal for geomembrane welding projects.

Hot air guns come with replaceable welding nozzles to adapt to different welding needs, and feature imported heating elements that ensure long-term stable operation at high temperatures.

Technical Specifications

Voltage	220V
Frequency	50HZ
Power	1800W
Welding Speed	0-6m/min
Heating Temperature	0-450℃
Welding Material Thickness	0.8mm-3mm
Welding Seam Strength	≥85% original material
Overlap Width	120mm
Net Weight	11kg
Certificate	CE

Key Features

Computer chip programming controls temperature and speed with digital LCD display
Copper hot wedge provides 4x better thermal conductivity than brass with excellent viscosity and secure screw fixation
50mm wading depth capability (water ≤50mm won't damage machine) with curved tube heating cartridge design
German-imported bearings throughout the machine
Advanced helical gear transmission technology in gearbox
Stainless steel armored shell temperature sensor resistant to acid and alkali corrosion

Product Advantages

Main Frame Design

The main frame is constructed from die-cast aviation aluminum with surface painting, providing lightweight yet strong construction.

Precision Bearings

Bearing positions and screw holes are CNC machined, utilizing Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

Digital Display Screen

Computer chip programming controls temperature and speed with digital LCD display for precise monitoring.

Pressure Adjustment

Ergonomic double handle design with high-strength spring pressure nuts for easy adjustment.

Hot Wedge

Copper hot wedge provides 4x better thermal conductivity than brass with excellent viscosity and secure screw fixation.

Heating Cartridge

50mm wading depth capability with curved tube heating cartridge design for reliable operation in wet conditions.

Applications

Mining: Mine wastewater treatment, waste residue treatment, tailings leakage prevention
Environmental Engineering: Landfill sites, sewage treatment plants
Aquaculture: Aquaculture ponds, fish ponds, shrimp ponds, and similar applications
